Size : 44.2*35.9*12.1mm
Screen : 27*27mm
Operate temperature : 0°~40℃
Battery : 600mAh
Electronic Shelf Label
The new generation of ESLs, applying the technology of Retail Digitals ESL Communication, Wi-Fi and IOT system, enable stores to achieve all digital functions without installing servers.

The ESL will automatically and regularly switch the page and display the promotion content to meet the needs of daily marketing activities, especially frequent price changes.

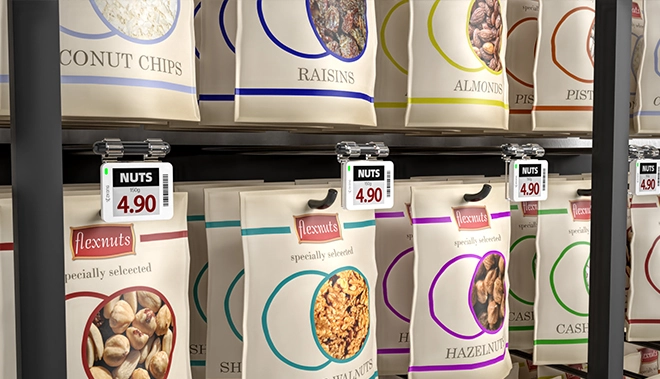

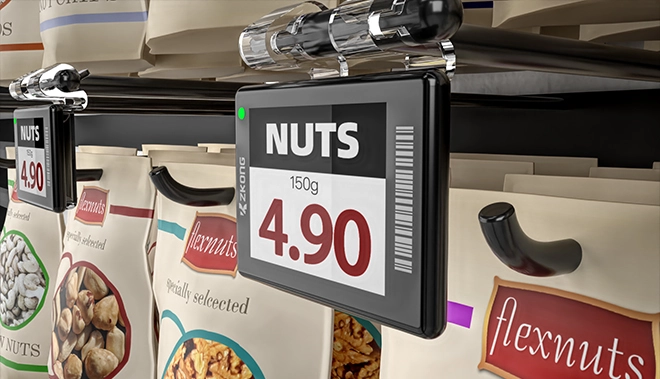

Install RETAIL DIGITALS large-size electronic shelf labels in shelves, central areas and entrances to ensure the coverage and exposure of brand advertising in shops.
The inventory data on the electronic shelf label screen will be updated simultaneously with the inventory system when the user’s management system is connected with the our cloud ESL system.

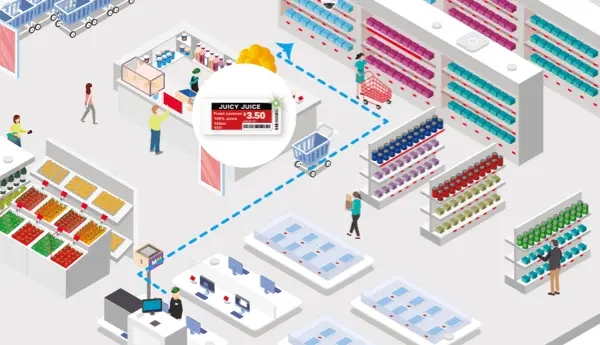

Combine the cloud ESLs with the shelf facilitate to manage the shelf, allowing staff to display goods in a quick, efficient and standardized manner.

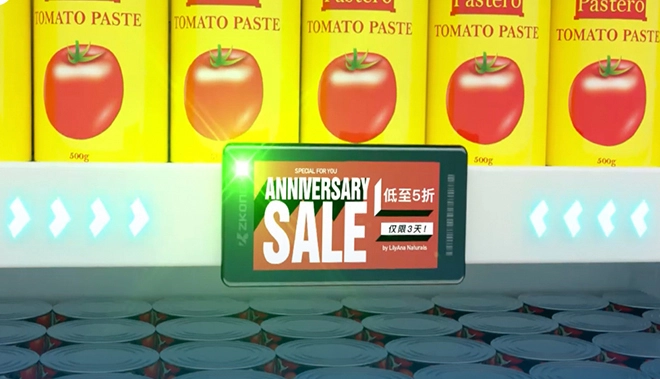

The RETAIL DIGITALS ESL improve the overall visual impact of the store, which also enhance the brand image.
Product Gallery

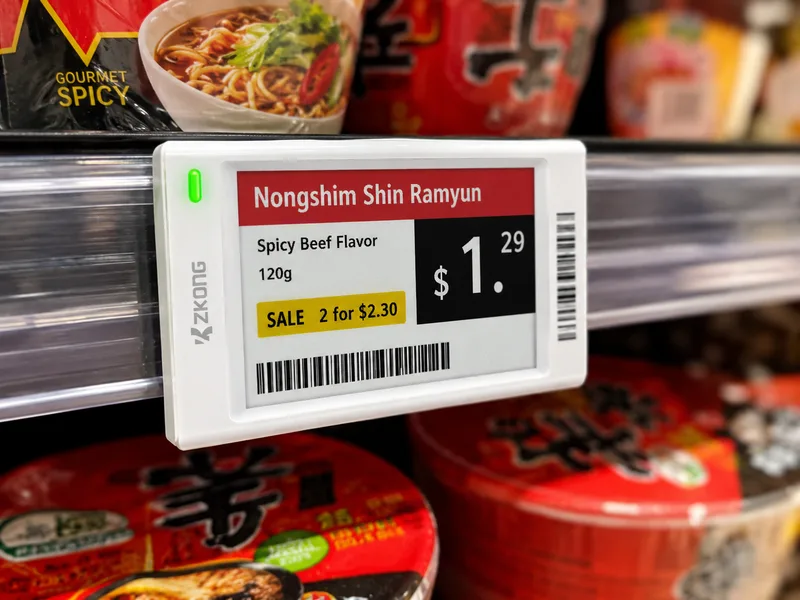

Valley Series
Blade Series
Shield Series
Essence Series
Dual Screen Series
Valley Series
ZKC15V
ZKC18V
ZKC21V
ZKC26V
ZKC29V
ZKC37V
ZKC42V
ZKC58V
ZKC75V
ZKC102V
ZKC116V
ZKC133V
Find more
ZKC15V


ZKC15V | 1.54 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
ZKC18V


ZKC18V | 1.8 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 52.5*35.9*12.1mm
Screen : 36.06*27.05mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC21V


ZKC21V | 2.13 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 70*34.5*12.1mm
Screen :48.55*23.7
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC26V


ZKC26V | 2.66 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 83*41*12.1mm
Screen :60.09*30.7mm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC29V


ZKC29V | 2.9 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 90*41*12.1mm
Screen : 66.9*29.1mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZKC37V


ZKC37V | 3.7 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 103.6*57*11.2mm
Screen : 81.54*47.04mm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC42V


ZKC42V | 4.2 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 104.8*87*12.8mm
Screen : 84.8*63.6mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZKC58V


ZKC58V | 5.8 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 135.4*110*9mm
Screen : 118.8*88.2mm
Operate temperature : 0°~40℃
Battery : 2400mAh
Screen : 118.8*88.2mm
Operate temperature : 0°~40℃
Battery : 2400mAh
ZKC75V


ZKC75V | 7.5 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 180.8*121.8*9mm
Screen : 163.2*97.9mm
Operate temperature : 0°~40℃
Battery : 2400mAh
ZKC102V


ZKC102V | 10.2 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 215.5*173*9.5mm
Screen : 215.52*143.68mm
Operate temperature : 0°~40℃
Battery : 3600mAh
ZKC116V


ZKC116V | 11.6 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 266.3*190*9mm
Screen : 244*164mm
Operate temperature : 0°~40℃
Battery : 3600mAh
ZKC133V


ZKC133V | 13.3 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size: 298.3*225.5*10.3mm
Screen: 275.52*195.16mm
Operate temperature: 0°~40℃
Battery: 3600mAh
Find more

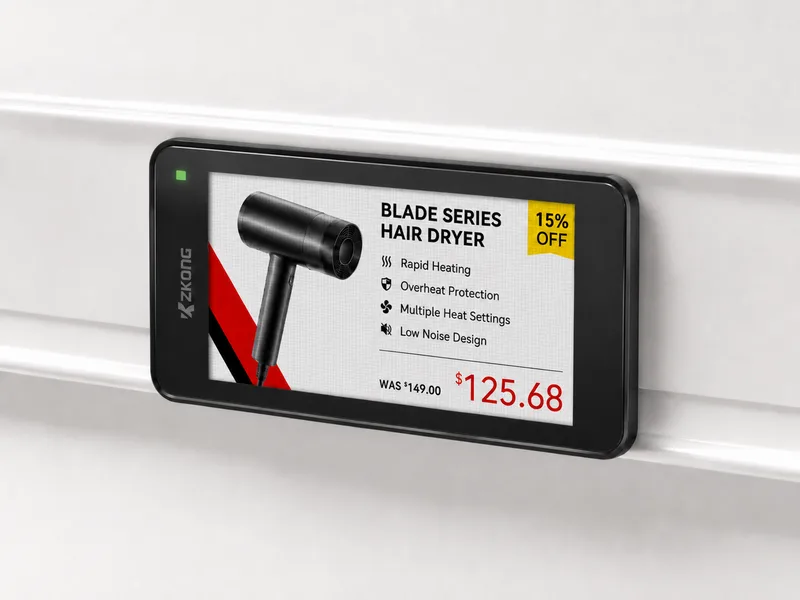

Blade Series
ZKC18B
ZKC21B
ZKC21BP
ZKC22B
ZKC26B
ZKC26BP
ZKC29B
ZKC29BP
ZKC35B
ZKC42B
ZKC43B
ZKC58B
ZKC75B
ZKC97B
Find More
ZKC18B


ZKC18B | 1.8 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 54.2*36.9*9.5mm
Screen : 36.06*27.05mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 36.06*27.05mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC21B


ZKC21B | 2.13 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 71*34.7*9.5mm
Screen : 48.55*23.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 48.55*23.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC21BP


ZKC21BP | 2.13 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 71*34.7*6.6mm
Screen : 48.55*23.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 48.55*23.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC22B


ZKC22B | 2.2 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size: 67.9*37*10mm
Screen: 48.1*26mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen: 48.1*26mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC26B


ZKC26B | 2.66 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 84.2*40.5*7.5mm
Screen : 60.09*30.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 60.09*30.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC26BP


ZKC26BP | 2.66 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 84.2*40.5*4.5mm
Screen : 60.09*30.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 60.09*30.7mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC29B


ZKC29B | 2.9 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 92*41.5*7.5mm
Screen : 66.9*29.1mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 66.9*29.1mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC29BP


ZKC29BP | 2.9 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 92*41.5*4.5mm
Screen : 66.9*29.1mm
Operate temperature : 0°~40℃
Battery : 600mAh
Screen : 66.9*29.1mm
Operate temperature : 0°~40℃
Battery : 600mAh
ZKC35B


ZKC35B | 3.5 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size: 101.5*50*11.8mm
Screen: 79.68*38.18mmm
Operate temperature : 0°~40℃
Battery : 1200mAh
Screen: 79.68*38.18mmm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC42B


ZKC42B | 4.2 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 103.6*87*10.3mm
Screen : 84.8*63.6mm
Operate temperature : 0°~40℃
Battery : 1200mAh
Screen : 84.8*63.6mm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC43B


ZKC43B | 4.3 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size: 129.7*41.3*9mm
Screen: 105.44*30.7mm
Operate temperature : 0°~40℃
Battery: 1200mAh
Screen: 105.44*30.7mm
Operate temperature : 0°~40℃
Battery: 1200mAh
ZKC58B


ZKC58B | 5.8 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 132*109*13mm
Screen : 118.78*88.22mm
Operate temperature : 0~40℃
Battery : 2400mAh(1*4CR2450)
ZKC75B


ZKC75B | 7.5 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 176.8*124.3*13mm
Screen : 163.2*97.92mm
Operate temperature : 0°~40℃
Battery : 2400mAh(1*4CR2450)10-year battery life
Screen : 163.2*97.92mm
Operate temperature : 0°~40℃
Battery : 2400mAh(1*4CR2450)10-year battery life
ZKC97B


ZKC97B | 9.7 ″Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 217*169.7*13.5mm
Screen : 201.6*141.12mm
Operate temperature : 0°~40℃
Battery : 3600mAh(1*6CR2450)10-year battery life
Screen : 201.6*141.12mm
Operate temperature : 0°~40℃
Battery : 3600mAh(1*6CR2450)10-year battery life
Find More

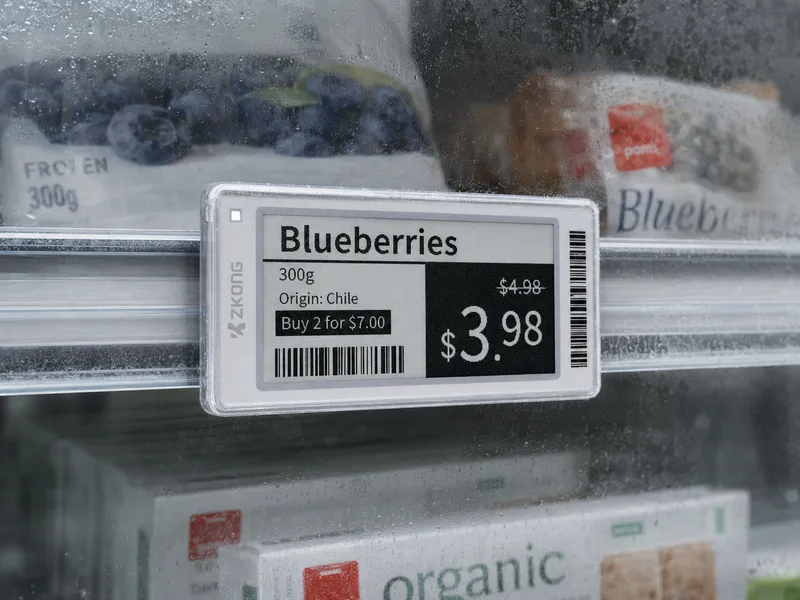

Shield Series
ZKC15S
ZKC21S
ZK21SF
ZKC26S
ZK26SF
ZKC27S
ZKC29S
ZKC37S
ZKD77
ZKC15S


ZKC15S | 1.54 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 44.5*35.9*13.7mm
Screen : 27*27mm
Operate temperature : 0~40℃
Battery : 600mAh
ZKC21S


ZKC21S | 2.13 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 70*36*14.3mm
Screen : 48.6*23.7mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZK21SF


ZK21SF | 2.13 ″ Screen
Dot Matrix EPD Black/White
Size : 70*36*14.3mm
Screen : 48.6*23.7mm
Operate temperature : -25°~25℃
Battery : 1000mAh
ZKC26S


ZKC26S | 2.66 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 83*41*14.3mm
Screen : 60.1*30.7mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZK26SF


ZK26SF | 2.66 ″ Screen
Dot Matrix EPD Black/White
Size : 83*41*14.3mm
Screen : 60.1*30.7mm
Operate temperature : -25~25℃
Battery : 1000mAh
ZKC27S


ZKC27S | 2.7 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 77.71*50*14.3mm
Screen : 57.3*38.2mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZKC29S


ZKC29S | 2.9 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 90.41*41*14.3mm
Screen : 66.9*29.1mm
Operate temperature : 0~40℃
Battery : 1200mAh
ZKC37S


ZKC37S | 3.7 ″ Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size :104*56.4*11.2mm
Screen : 81.54*47.04mm
Operate temperature : 0°~40℃
Battery :1200mAh
ZKD77


ZKD77 | 7.7 ″ Screen
Segment Code Screen Black/White
Size:215.7*206.8*15mm
Screen:179.4*81.54mm
Operate temperature : 0°~40℃
Battery : 4800mAh
Color Support : Black White

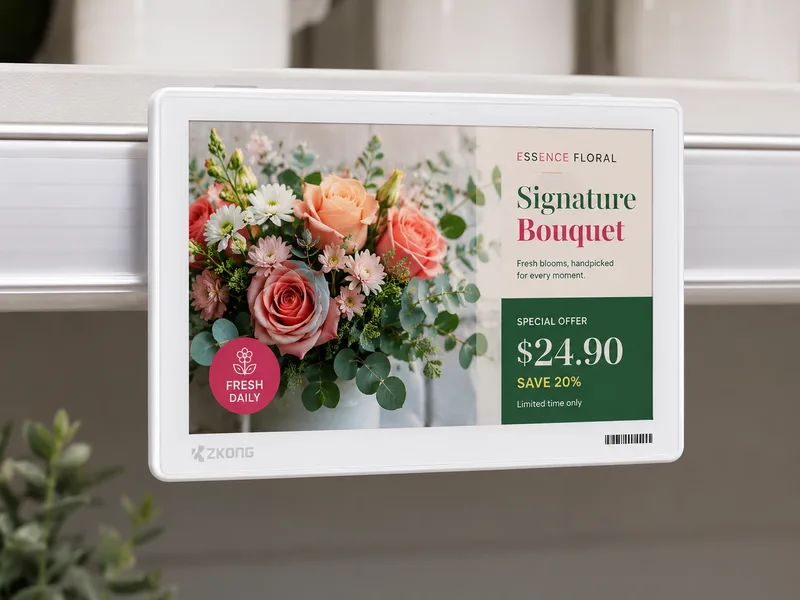

Essence Series
ZKC15V-E4
ZKC21B-E4
ZKC21V-E4
ZKC24B-E4
ZKC26V-E4
ZKC26B-E4
ZKC29V-E4
ZKC29B-E4
ZKC30B-E4
ZKC44B-E4
ZKC58V-E7
ZKC73B-E4
ZKC82B-E4
ZKC133V-E
ZKC15V-E4


ZKC15V-E4/1.54”Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 44.5*35.9*12.1mm
Screen: 27.51*27.51
mmOperate temperature : 0~40℃
Battery: 600mAh
ZKC21B-E4


ZKC21B-E4/2.13” Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 71*34.7*9.5mm
Screen: 48.55*23.7 mm
Operate temperature: 0~40℃
Battery: 600mAh
ZKC21V-E4


ZKC21V-E4/2.13” Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 70*34.5*12.1mm
Screen : 48.55*23.7 mm
Operate temperature: 0~40℃
Battery:1200mAh
ZKC24B-E4


ZKC24B-E4/2.4” Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 77.9*42.3*11.8mm
Screen: 52.1*29.6mm
Operate temperature: 0~40℃
Battery:1200mAh
ZKC26V-E4


ZKC26V-E4/2.66” Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 83*41*12.1mm
Screen : 60.09*30.7 mm
Operate temperature : 0~40℃
Battery: 1200mAh
ZKC26B-E4


ZKC26B-E4/2.66”Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 85*41*7.5mm
Screen: 60.09*30.7
Operate temperature: 0~40℃
Battery: 600mAh
ZKC29V-E4


ZKC29B-E4/2.9″Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 92*41.5*7.5mm
Screen: 66.9×29.06 mm
Operate temperature: 0~40℃
Battery: 600mAh
ZKC29B-E4
ZKC30B-E4


ZKC30B-E4 | 3.0 ″Screen
Dot Matrix EPD Black/White/Red/Yellow
Size : 102*44*8.5mm
Screen : 70.4*29.568mm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC44B-E4


ZKC44B-E4 | 4.4 ″Screen
Dot Matrix EPD Black/White/Red/Yellow
Size : 109*89.1*10.4mm
Screen : 90.112*64.768mm
Operate temperature : 0°~40℃
Battery : 1200mAh
ZKC58V-E7


ZKC58V-E7 | 5.8 ″Screen
Dot Matrix Multi-color Screen
Size : 135.4*110*9mm
Screen : 114.9*85.8mm
Operate temperature : 0°~40℃
Battery : 2400mAh
Color : Multi color
ZKC73B-E4


ZKC73B-E4 | 7.3 ″Screen
Dot Matrix EPD Black/White/Red/Yellow
Size: 176.8*124.3*13mm
Screen: 160*96mm
Operate temperature : 0°~40℃
Battery : 1800mAh
ZKC82B-E4


ZKC82B-E4 | 8.2 ″Screen
Dot Matrix EPD Black/White/Red/Yellow
Size : 200.1*137.1*9.5mm
Screen : 180.224*101.376mm
Operate temperature : 0°~40℃
Battery : 1800mAh
ZKC133V-E


ZKC133V-E | 13.3 ″Screen
Dot Matrix Multi-color Screen
Size : 298.3*228*9mm
Screen : 270*203mm
Operate temperature : 0°~40℃
Battery : 3600mAh
Color : Full color
Dual Screen Series
ZKC58V-D
ZKC58V-DN
ZKC75V-D
ZKC75V-DN
ZKC58V-D


ZKC58V-D | 5.8 ″ Dual Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size : 135.4*109.5*13mm
Screen : 118.8*88.2mm
Operate temperature : 0~40℃
Battery : 2400mAh
ZKC58V-DN


ZKC58V-DN 5.8″
Dot Matrix EPD Black/White/Red(Yellow)
Size : 135.4*109.5*13mm
Screen : 118.8*88.2mm
Operate temperature : 0~40℃
Battery : 2400mAh
ZKC75V-D


ZKC75V-D | 7.5 ″ Dual Screen
Dot Matrix EPD Black/White/Red(Yellow)
Size:180.2*121.2*13mm
Screen : 163.2*98mm
Operate temperature : 0~40℃
Battery:3600mAh
ZKC75V-DN


ZKC75V-DN 7.5″
Dot Matrix EPD Black/White/Red(Yellow)
Size:180.2*121.2*13mm
Screen : 163.2*98mm
Operate temperature : 0~40℃
Battery:3600mAh
