Quantum Valley Series

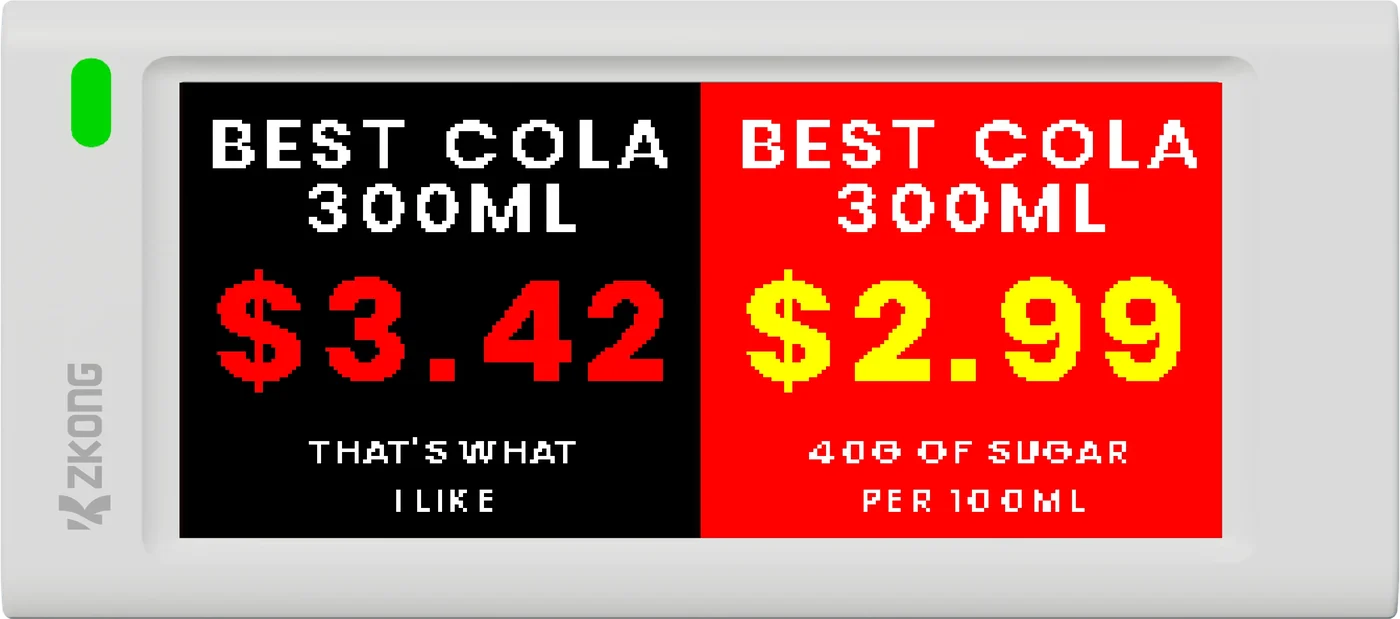

ZKC23V | 2.3“ Dot Matrix EPD Graphic Screen ESL

Name: ZKC23V | 2.3“ Dot Matrix EPD Graphic Screen ESL
Brand: ZKong

Size: 69.3*34.5*11.3mm Screen: 25.01*51.25mm Operate temperature: 0~40℃ Battery: 1200mAh

The Latest Breaking News from ZKONG and Retail Industry

To Share Information and Explore Business Opportunities with Us

Size69.3*34.5*11.3mm

Screen25.01*51.25mm

Operate temperature0~40℃

Battery1200mAh

Resolution250*122

Pixel density118 PPI

Display colorsBlack, White, Red, Yellow

Viewing angle~180°

Weight32.4g

WirelessBLE 5.1/5.4, 2.4-2.485GHz

NFC13.56MHz (NE4 version)

VersionsZKC23V-NE4 (NFC), ZKC23V-E4 (no NFC)

EncryptionAES 128/AES 256

Indicator1 tri-color LED (red, green, blue)

Operating humidity5% - 90%, non-condensing

Storage temperature-20°C - +60°C

CertificationsCE, FCC, RoHS, MIC, SRRC
